    Auger Filling SS304 950kg Ton Bag Packaging Machine

    Ask Lasest Price
    Brand Name : EAGLE
    Model Number : SXP1000
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 50 units/month
    Delivery Time : 20-30 working days after deposit
    • Product Details
    • Company Profile

    Auger Filling SS304 950kg Ton Bag Packaging Machine

    Gross Weight Type 950kg Bag Packaging Machine In Rubber Industry

    Brief Introduction


    This type packing machine can be used for any type of jumbo bags, such as 300kg, 500kg, 1tons, 1.5tons and 2tons etc.
    The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.

    Details

    The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
    As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
    SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.

    Composition section of operating panel

    The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
    1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
    2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
    3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.

    Technical Parameters

    Quantitative range (kg/bag)400~1500 kg
    Control accuracy (%)Better than 0.2
    Packaging speed (tons/hour)10-30
    Type of packaging bagPP centralized packaging woven bag
    Air supply sourcePressure (MPa)0.5±0.1
    Air consumption (m3/min)0.1
    Power supplyPower supply380V, 50Hz
    Power (kW)5.0
    Working environmentRelative humidity<95%
    Ambient temp.-15℃~45℃
    MaterialThe part in contact with the material is 316L stainless steel, the rest is 304 stainless steel.


    Features

    The weighing system of SXP1000 quantification Ton packaging machinery contains high accuracy (0.02%) sensor and high-resolution controller, to keep the machine with high accuracy and stable performance.
    The material feeding parts adopt two kinds big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
    The packing range is 500-1200 kg adjustable. It suitable to big bags packing.
    The parameter setting and the weighing calibration is very simple and with convenient operation.

    Our Service

    Documents:
    Operational manual with English will be given at the time of dispatch of machine.
    Guarantee:
    The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
    Service:
    Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).

    Machine Main Parts

    1. Electric rotary valve
    2. Loadcell
    3. Access platform
    4. Main weighing bracket
    5. Automatic release mechanism
    6. Automatic bag clamping mechanism
    7. Transition bin
    8. Pallet
    9. Chain conveyor
    10. Elevating cylinder
    11. Ladder and guardrail
    12. Solenoid valve control cabinet
    13. Explosion-proof control cabinet

    Flowing chart

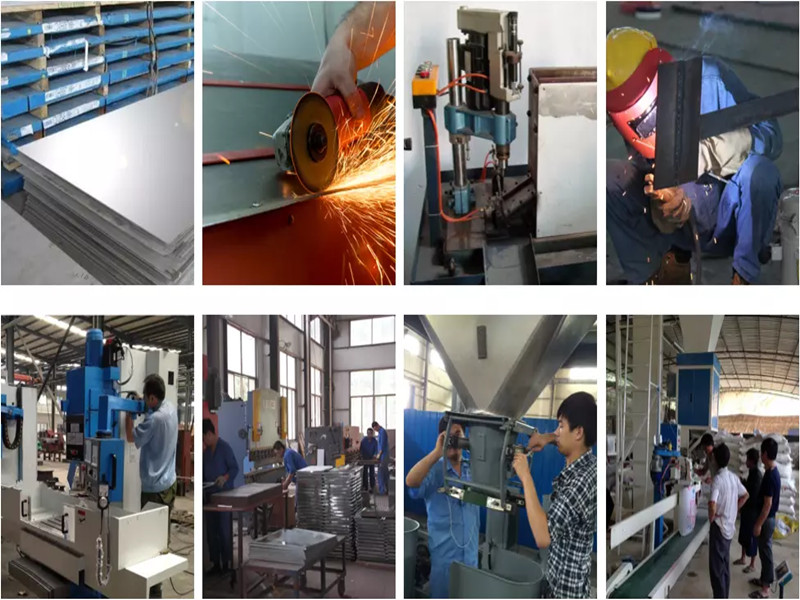

    Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service



    Packaging and Shipping


    The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
    When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
