    High Precision 50Kg Pharmaceutical Packing Machine

    Ask Lasest Price
    Brand Name : EAGLE
    Model Number : SXP50PW
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 units/month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

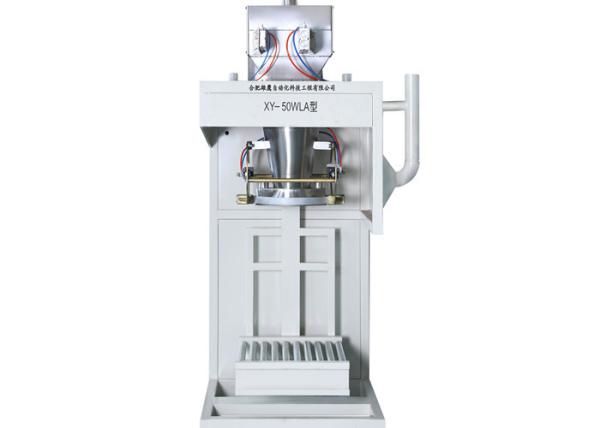

    High Precision 50Kg Pharmaceutical Packing Machine

    High Precision Powder Weighing And Filling Machine In Pharmaceutical Industry , 50 Kg Bag

    Brief Introduction

    This series packaging machine can be matched with feeder, hopper, bag filter, conveyor, bag sewing machine, and air compressor etc.

    Application Scope

    Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.

    Working Principle:
    This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed).

    Technical Parameters

    ModelWeighing ScopeSpeedAccuracyPowerAir pressure
    SXP05PB0.5-5kg4-6 bags/minute0.2-1%F.S2Kw

    0.4-0.6Mpa

    SXP25PW5-25KG3-5 bags/minute

    0.2%F.S


    4Kw

    SXP25PB5-25KG5-10bags/minute
    SXP50PW10-50kg3-5 bags/minute


    Features:
    Separate high brightness LED windows of packaging weighing inputting, weighing displaying; simple and intuitive menu operation; man-assisting bag-holding (or barrel),pneumatic bag clapping, independent weighing system: high weighing precision, high speed; high control precision with screws controlled by an asynchronous motor; functions of automatic peeling, data encryption, time displaying; stable structure, small area occupied, easy to clean and maintain.

    Machine Main Components List

    NoNameModelManufacturerQTY
    1Control systemCanada Germaine1
    2Weighing controllerCanada Germaine1
    3Weighing sensorAvionics1
    4Approach switchBN-M18Omron1
    5Optoelectronic switchFQ31-TO8POmron1
    6Other low-pressure componentZhengtai1batch
    7MotorZhengjiang China1batch
    8CylinderAIRTAC1batch
    9Magnetic valveAIRTAC1batch
    10Other pneumatic elementAIRTAC1batch


    Package bag examples:


    After-sale Service

    1.We will test the machine before machine delivery. 2.Professional manual shipping together with the machine.

    3.Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


    Packaging and Delivery


    1. Wooden case after fumigation treatment. No need timber inspection.
    2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.


    WHY CHOOSE US
    1.We have 30 years’ experience to packing machine
    2.Strong ability of product sure to deliver the goods within a month
    3.We have a stable technology team that more than 30 engineers in our factory

    4.ISO9001 certified workshop and CE

    5.The supporter of spare part all are famous company and have reliable quality
