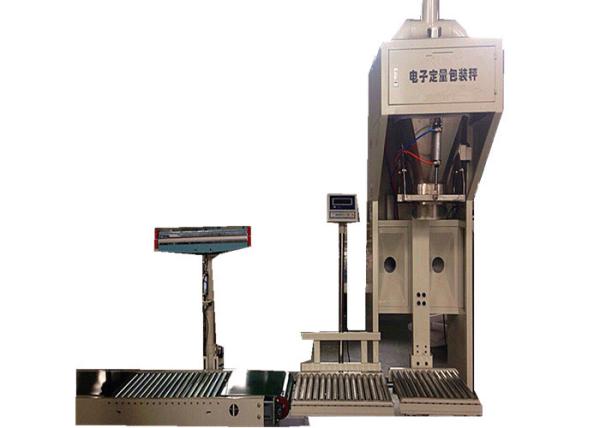

Net Weighing Type Double Screw Powder Packaging Production Line In Minerals Industry

Application Scope

Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.

Working Flow

Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.

Brief Introduction

This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.
The machine uses double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.

Technical Parameters

Packing Machine

Weighing capacity: 2 to 5 packs / min
Weighing range: 10-50 kg/bag
Weighing error: ±0.5%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.7MPa
Gas consumption: 0.4Nm3/min

Sewing machine

Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw

Machine Main Components List

Features:

1, Weighing speed, high precision;

2, Using Germain weighing instruments, high-quality sensors, solenoid valves, etc., good reliability, long life, less maintenance

3, Can store 20 kinds of formula, can easily change the packaging machine parameters

4, The whole machine with carbon steel, contact part of the use of stainless steel 304.

5, Fully enclosed bag switch, control system sealed well.

6, With lack of material and tolerance alarm function.

Pre-sale service

1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.

Package bag examples:

Packaging and Delivery

1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.

WHY CHOOSE US

1. Professional design team and sales department

2. Made in China golden supplier

3. Professional, reliable, honest, manufacturer.

4. Good reputation from long-term partner, agency, and client.

5. We offer most suitable and efficient packaging solution according to your specific requirements.

6. 24/7 after sale service. Includes on-line service or send working videos.

Hefei eagle automation engineering technology co., LTD., is located in China's science and education city hefei national hightech development zone, the existing staff more than 220 people, including technology, research and development personnel more than 60 people. Company research and development institutions brought together a group of tsinghua, USTC, such as domestic GeGongDa key university graduate talent, professional cover automation technology, electronic technology, mechanical design, and other fields, the formation of a strong development capability of high-quality talent team.

Company and the China university of science and technology, intelligent machinery research institute, Chinese academy of sciences, hefei and other top domestic automation research colleges and universities and research institutes to form the "industryuniversityinstitute" cooperation, attracted a large number of experts and scholars and scientific and technological personnel, for the company's technology development provides a powerful intellectual support. Successfully developed full automatic, semi-automatic, automatic logistics after packaging machine and packaging engineering of a new generation of pallet handling industrial robots and form a complete set of automated assembly line products, their packaging and palletizing ability and various technical indexes in the domestic leading level. In the chemical industry, building materials, fodder, food, beverages, beer, automatic logistics and other industries has been widely used.

The company is committed to palletizing robot, automatic packaging machinery research and development and production, has seven patents, is the present domestic minority have palletizing robot and automatic packaging machinery at the same time one of the core technology of production enterprises. For this reason, at present, the company from the packaging of the product imported into the tray, output from the robot's configuration to the design of the gripper, companies can provide a comprehensive system solutions, professional equipment manufacturing, as well as a full range of technical support and after-sales service.

Company with science and technology as the guide, surviving on quality, reputation for market, for every customer to provide reliable products with a reasonable solution. Full of team spirit of the eagle people will with the rigorous work attitude and hard entrepreneurial spirit, accelerate innovation, the pursuit of excellence!

The eagle company willing to work with you hand in hand, forge ahead, create brilliant!
