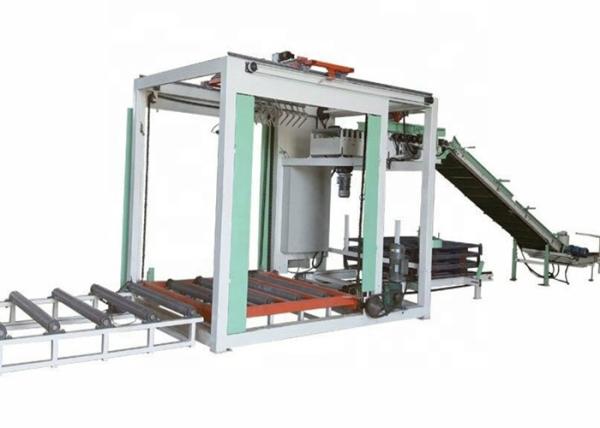

Packing And Palletizing Machine In 3C Electric Industry , 13000 W
Power
Working Process
1, Bags/boxes/crates travel up the in-feed conveyor
2, Slightly inclined gripper receives the bag/box/crate and places
it against its back edge
3, Centralization unit inside gripper places bags/boxes/crates
straight in the lateral centre of the gripper width
4, Gripper doors open simultaneously. Bags are dropped on sliding
doors. Boxes and crates are lowered on sliding doors by
centralization unit
5, Pallet is lifted up the enclosed stacking cage to be right
underneath the sliding doors where individual layers are formed
6, Once layer is complete, squeeze collar compresses it to create a
tight confined layer to the pallet’s dimensions
7, Sliding doors open to place layer on the pallet
8, Sliding doors close and a new layer is started. At the same
time, pallet moves up to press against underside of the sliding
doors to press and flatten recently formed layer
9, Pallet drops back down slightly for next layer to be placed on a
flatten surface
10, Process is repeated until pallet is complete
11, As the pallet exits, a new layer starts. The sliding doors
provide buffer to allow continuous palletizing
Palletizer Features
Touch screen operation is adopted to accomplish the man-machine
dialogue, using the Siemens PLC programmable control number
The symmetry and compact structure design, suitable for the narrow
space of the existing production sites
Taken the pallet database is big, can accommodate 15 empty pallets,
which can realize automatic supply pallet. (pallet library is
optional)
Don't have to change the stacking parts can complete several
stacking ways, only need to obtain the parameters is ok.
Technical parameters
| Removable size | Maximum height 1500mm, or custom |
| Applicable pallet | Width 1000mm × length 1200mm or width 1100mm × length 1400mm |
Machine Advantage | The machine plc programmable computer automatic controller,
photoelectric switch, travel switch, pneumatic Control, etc. are used in Germany, Japan and other countries
well-known brand products |
| Applicable object size | Diameter 50mm - diameter 153mm, height 50mm - high 150mm |
| Applicable objects | All kinds of bags, tin cans, glass bottles, plastic bottles, etc. |
| Dimensions | length 6.5m × width 1.7m × high 2.1m; |
| Power parameters | 3 × 380v 9kw |
Brief Introduction
The machine is mainly used in the canning industry, the bag, empty
bottles, tin cans, aluminum cans and glass bottles of empty tank
palletizing operations. First in the demolition of the board with
the stack will be stacked out of the stack into the main room. At
this time the palletizing machine through the network conveyor
automatically arranged by the tank, the use of sub-tank device will
be finished empty cans in accordance with the required empty canned
body size of the whole column, and then by the tank device to empty
the tank to the pallet master room , And finally by the main room
of the lifting mechanism to complete the layered tank action. When
the stack is good, the empty canned body is sent to the automatic
winding film machine for film winding for easy storage and
delivery. The whole work process has automatic demolition board,
board, lift, automatic sub-tank, code tank, automatic drop,
stacking, automatic winding film, etc., to replace the artificial
code tank way, save manpower, greatly improve production
efficiency.
Our Service
| Pre-Sale | After-Sale |
| 1 | 24 hours online service | 1 | 12 months warranty |
| 2 | Professional engineer support technical guide | 2 | Spare parts provided in low cost |
| 3 | Special design options upon client’s conditions on site | 3 | Exclusive and unique solution by professional engineers |
| 4 | Packing under strengthen protection against collision | 4 | New technology and other related advisory services |
FAQ
Q: Can you offer overseas technical support?
A: Yes. We can send engineer to your company to set the machine and
train your worker if needed.
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to
help customers to solve machine problems.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the
balance of 70% to be paid on delivery. Minimum order quantity: 1
set, FOB Shanghai Delivery time: about 20-30 working days after
receipt of formal order and 30% deposit. Warranty: 12 months
following delivery. We offer online service 24 hours all day long,
Skype, Email etc. You can contact us any time, if urgently, please
call us.
Package and Shipping
Automatic packing machine is usually loaded in a wooden box with
surface covered plastic film. The electrical motor and spare parts
will be packed by wooden case or steel frame. we also offer various
ways of package or as the clients' request.
