1000 Kg Huge Sack Bag Filling Packing Machine In Plastic Industry

Machine Introduction

The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.

Machine Technicals

Machine Components List

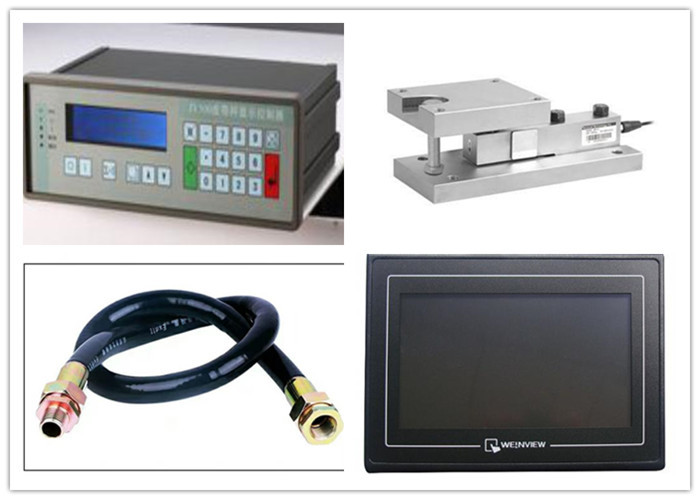

Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.

Composition section of operating panel

The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.

Our Advantages

SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

Machine Main Parts

1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet

Machine Installation

We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.

Packaging and Delivery

The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.

Hefei eagle automation engineering technology co., LTD., is located in China's science and education city hefei national hightech development zone, the existing staff more than 220 people, including technology, research and development personnel more than 60 people. Company research and development institutions brought together a group of tsinghua, USTC, such as domestic GeGongDa key university graduate talent, professional cover automation technology, electronic technology, mechanical design, and other fields, the formation of a strong development capability of high-quality talent team.

Company and the China university of science and technology, intelligent machinery research institute, Chinese academy of sciences, hefei and other top domestic automation research colleges and universities and research institutes to form the "industryuniversityinstitute" cooperation, attracted a large number of experts and scholars and scientific and technological personnel, for the company's technology development provides a powerful intellectual support. Successfully developed full automatic, semi-automatic, automatic logistics after packaging machine and packaging engineering of a new generation of pallet handling industrial robots and form a complete set of automated assembly line products, their packaging and palletizing ability and various technical indexes in the domestic leading level. In the chemical industry, building materials, fodder, food, beverages, beer, automatic logistics and other industries has been widely used.

The company is committed to palletizing robot, automatic packaging machinery research and development and production, has seven patents, is the present domestic minority have palletizing robot and automatic packaging machinery at the same time one of the core technology of production enterprises. For this reason, at present, the company from the packaging of the product imported into the tray, output from the robot's configuration to the design of the gripper, companies can provide a comprehensive system solutions, professional equipment manufacturing, as well as a full range of technical support and after-sales service.

Company with science and technology as the guide, surviving on quality, reputation for market, for every customer to provide reliable products with a reasonable solution. Full of team spirit of the eagle people will with the rigorous work attitude and hard entrepreneurial spirit, accelerate innovation, the pursuit of excellence!

The eagle company willing to work with you hand in hand, forge ahead, create brilliant!
