    Stainless Steel Curve Roller Conveyor With Adjustable Foot SEW Motor 0.75 - 1.5 KW

    Ask Lasest Price
    Brand Name : EAGLE
    Model Number : SX-WDA-2
    Certification : CE
    Price : USD 900.00-4,000.00/set
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets/month
    Delivery Time : 6-10 working days
    • Product Details
    • Company Profile

    Stainless Steel Curve Roller Conveyor With Adjustable Foot SEW Motor 0.75 - 1.5 KW

    SEW Motor 0.75-1.5 KW Stainless Steel Curve Roller Conveyor With Adjustable Foot


    Roller Conveyor Application


    The rollers machine is applicable to transport the goods whose bottom is flat. Mainly applied to connect packing/bagging machine with palletizing robot system, including the belt conveyor, roller conveyor for bag, carton, drum, bottle and so on. Also contains empty pallet magazine system.


    Features


    Roller conveyor is composed of roller section, drive unit, chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.


    Technical Parameters


    No.NameBrand/ModelMaterial
    1MotorCPGAluminum (shell)
    2Bearing blockLKCast iron
    3OutriggerSquare tube 80x40Carbon steel spray
    4BeamSheet metal weldingCarbon steel spray
    5Curve rollerEagle, caged rollersGalvanized
    6GuardrailBent plate, thickness 1.5mmStainless steel 201
    Stainless Steel Curve Roller Conveyor With Adjustable Foot SEW Motor 0.75 - 1.5 KWStainless Steel Curve Roller Conveyor With Adjustable Foot SEW Motor 0.75 - 1.5 KW

    Conveyor Type - Curve Conveyor


    No.ModelNameSize
    1SX-WDA-2Curve conveyor ALength 720mm, height 200mm
    2SX-WDB-2Curve conveyor BLength 720mm, height 750mm

    The packaging bag is conveyed to curve conveyor and the bag conveying direction will be changed by the turning effect of the curve and realize various functions of the next stations. The use of caged rollers can effectively prevent the bags from slipping on the conveyor, achieve the function of caching bags by photoelectric detection and PLC program control.


    Package and Shipping

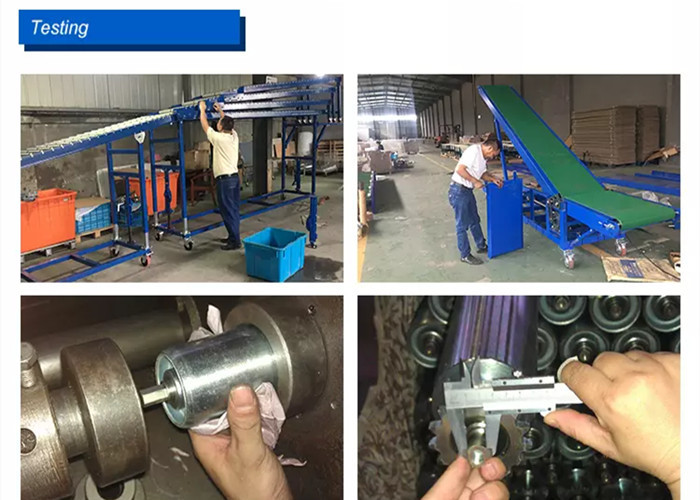

    All the products will be strictly quality checked in house before packing.

    All the products will be well packed before shipping.

    All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion


    Our Service


    Any inquiries will be replied within 24 hours.

    Professional manufacturer. Welcome to visit our factory.

    OEM available: Any of your idea will be took and we will help to design as best as we can and put it into production.

    High quality, reasonable & competitive price, fast lead time.


    WHY CHOOSE US


    1. We have 20 years’ experience to packing lines

    2. Strong ability of product sure to deliver the goods within a month

    3. We have a stable technology team that more than 30 engineers in our factory

    4. ISO9001 certified workshop and CE

    5. The supporter of spare part all are famous company and have reliable quality
