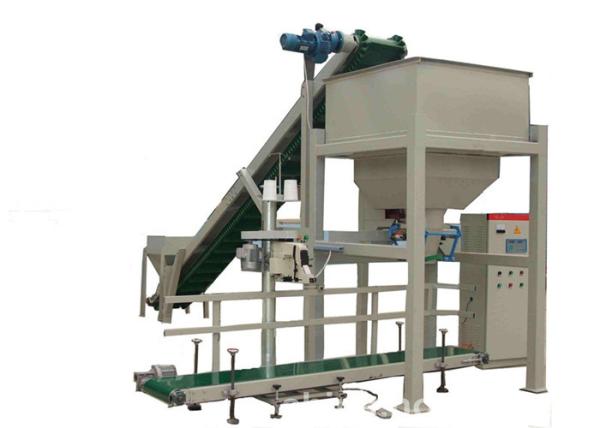

PLC Control FIBC 2T Jumbo Bag Filling Machine Flake Materials
Granule Packing
The Jumbo Bag Filling Machine is suitable for packing non sticky,
bulk or granular material, such as medical pills, food Stuffs,
plant seeds, washing powder, coffee, sugar, desiccant etc The
integrated processes of bag making, measuring filling, sealing
cutting, counting and hot pressing codes can be done automatically.
Jumbo Bag Filling Machine Technical Parameters
| Product name | PLC Control FIBC 2T Jumbo Bag Filling Machine Flake Materials
Granule Packing |
| Model | SXP1000D/2T | SXP1000F/2T | SXP1000L/2T |
| Applicable | flake materials, granule and powder mixture, irregularly shaped
materials and bad fluidity materials | powdery materials or fine granule materials with good fluidity | granular materials |
| Weighing range | 400kg to 2000kg per jumbo bag |
| Feeding mechanism | Belt feeder | screw feeder | gravity feeder |
| Precision | ≤±0.2-0.5% |
| Packing speed | 15-30bags/hour | 15-30bags/hour | 15-30bags/hour |
| Voltage | Single phase AC220V, three phase 380V, 50Hz, or customize |
| Power | 1.5kw | 3 kw | 1.5 kw |
| Dimension | 2800*3700*5000mm |
| Working environment | -10℃-40℃ |
Machine Components
Our packing machine accessories all use the famous brand, such as
pneumatic element use the AirTAC, HMI (color touch screen panel)
use the WEINVIEW/ Delta, the electric element we use the
Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you
need.
The bagging machine can stable working more than 10 years.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Features
1, Feeding part: Adopt two kinds (big one and small one) valves to
control the three kinds feeding: fast, slow and exactness.
2, weighing shelf: The weighing shelf connected with sensor, and
convey the Weight signal to the electric box which controlling the
operation of the machinery.
3, The electro motion car operated by the motor and run in the
track to convey the products. The cars' position controlled by
worker and the final position is determined by the limit switch.
4, Electric box: Exterior signal and the sensor signal are conveyed
to the electric box, which could control the feeding ON and OFF,
cylinder lifting and the car running through inished program.
Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Flowing chart
Raw materials-cutting-drilling-welding-folding-polishing-rust
prevention-paint spraying- assembling- testing-packaging and
transport-after service
Packaging and Delivery
The packing machine before sent to you will installation and
testing welled then whole set packed in the big wooden box then in
container.
